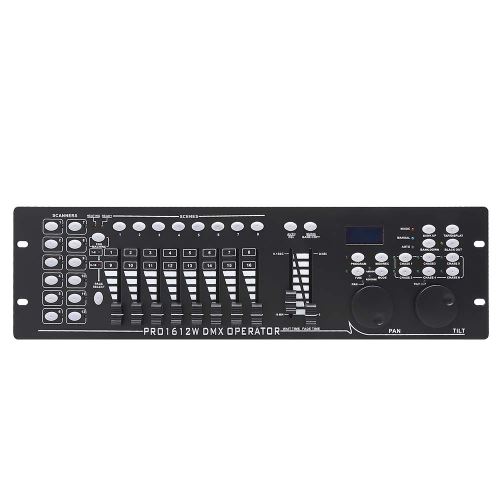

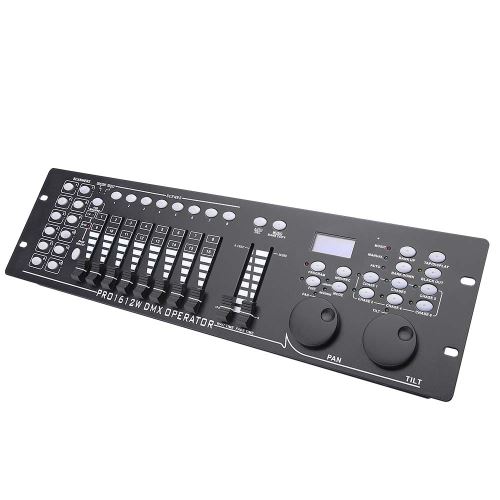

● DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights.

● 12 fixtures with up to 20 channels each can be controlled.

● 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch).

● USB port for storing program data.

● 240 programmable scenes (30 banks x 8 scenes).

● 6 programmable chases with 240 scenes each can be stored.

● Manual, time-controlled or sound-controlled chase running mode.

● Fade between scenes adjustable between 0-30 s.

● Copy function for scenes and banks.

● 2 DMX fixture levels can be controlled, each with up to 10 channels.

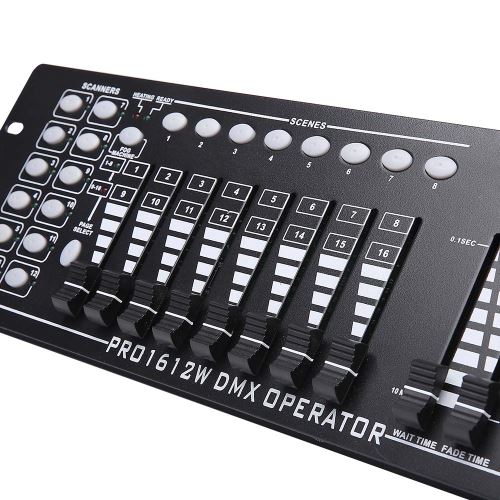

● 8 DMX channel faders.

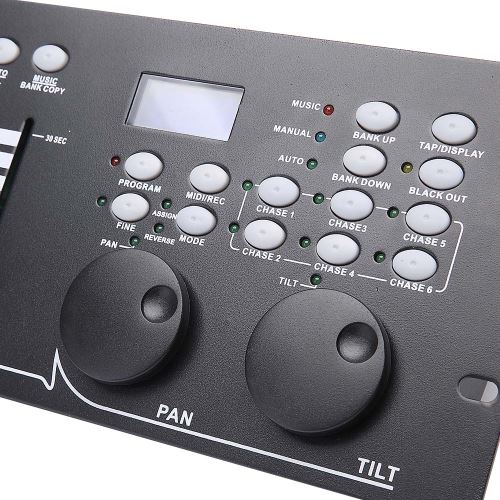

● 2 jog wheels for pan/tilt.

● Blackout function.

● Sound control via built-in microphone or line input with adjustable sensitivity.

● Backlit LCD (2 x 8 characters).

● RDM support (DMX address setup and identify).

● Fog machine control possible.

● Supports standard MIDI.

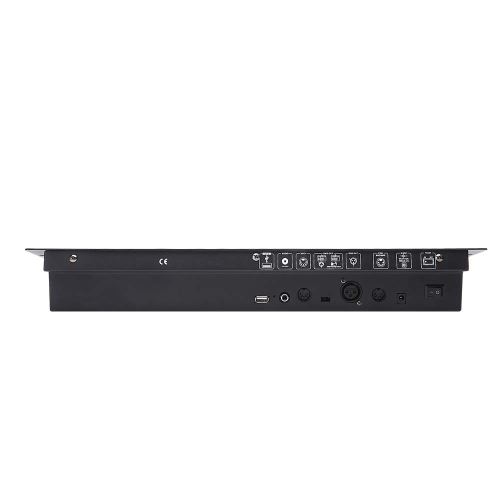

● 3-pin XLR connector with polarity selector.

● Firmware update via USB.

● Desktop console.

● Rack installation with 3 units.

● DC9V, 800 mA min.
● DMX 512 & RDM protocol.
● Control 192 DMX channels.
● Control up to 12 fixtures, each up to 16 channels.
● 6 chases, each up to 240 steps, can run multi chases simultaneously.
● Each chase can set loop from 1 to 20.
● Chases can be manual, sound control or auto-run.
● Last chase run automatically when power switch on.
● USB for data backup and firmware update.
● RDM to set the DMX addresses of the fixtures from controller.
● Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
● MIDI interface, can trigger chase & scene.
● Power supply: DC 9V 800mA min.
● Dimensions: 482 x 134 x 70 mm.
● Weight: 2 kg.
